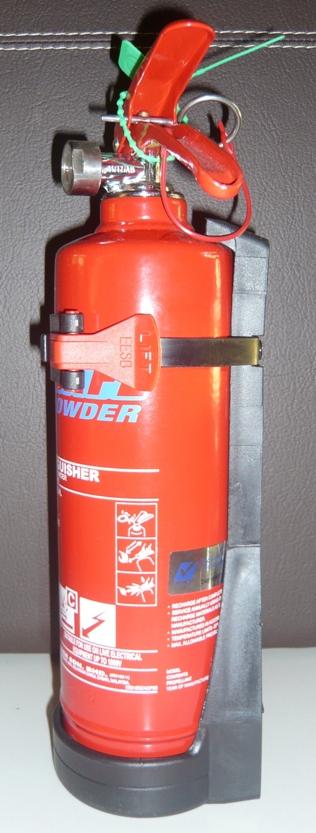

Product Description

Type: Stored Pressure Type
Extinguishing Medium: ABC Dry Powder
Capacity: 1.0 kg
Propellant: Dry Nitrogen (N2)
Valve: Controllable Chrome Plated Brass Valve with Pressure Indicator
Body Diameter: 80 mm
Overall Height: 332 mm
Approx Full Weight: 1.9 kg
Working Temp Range: – 20°C to + 60°C
Working Pressure: 12 Bar @ 27°C
Test Pressure: 25 Bar
Burst Pressure: Exceeds 69 Bar
Approx Discharge Range: 2 m
Approx Discharge Time: 7 sec
Fire Rating: 5A:21B
Coating (Internal): Stoving Epoxy Primer
Paint Finishing: RAL 3000 Flame Red Polyester Powder Coating

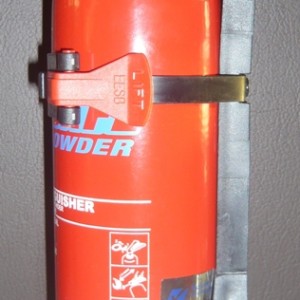

Mounting: Plastic Vehicle Bracket
Manufactured & Certified to SS 232:1999 and BS EN 3:1996
